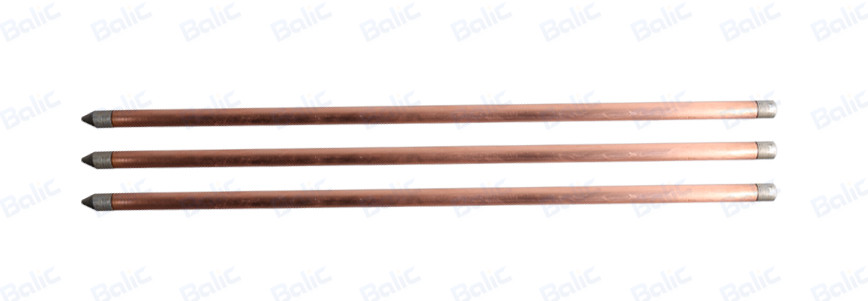

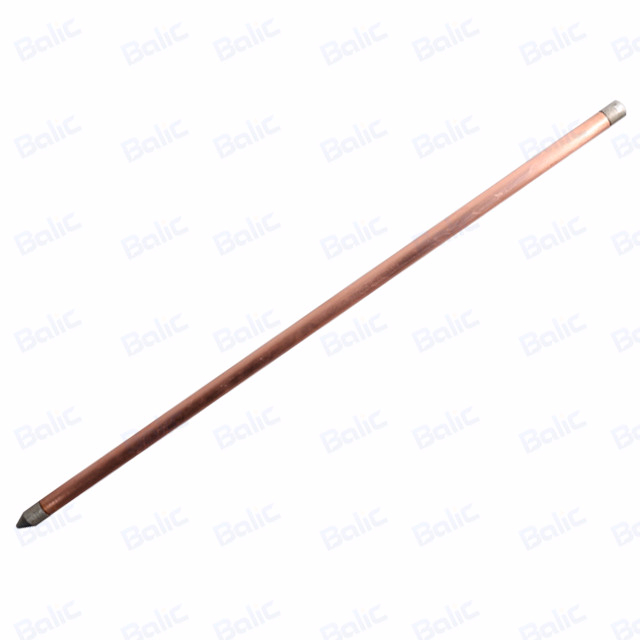

Solid Copper And Stainless Steel Earth Rod

Solid Copper And Stainless Steel Earth Rod

Solid Copper And Stainless Steel Earth Rod

Solid Copper And Stainless Steel Earth Rod

We provide common sizes, we also can do according to your requests. Please contact us to get to know more information about our products and service.

inquiry
  • Detail
Product Description

Bailijia 304 stainless steel ground rods can be used for the geological conditions are relatively poor power plants, substations, line towers, communication base stations, airports, railways, oil refining plants, oil storage and other places of lightning protection and grounding, anti-static grounding, protective grounding, work grounding and so on.

The model has two bell:

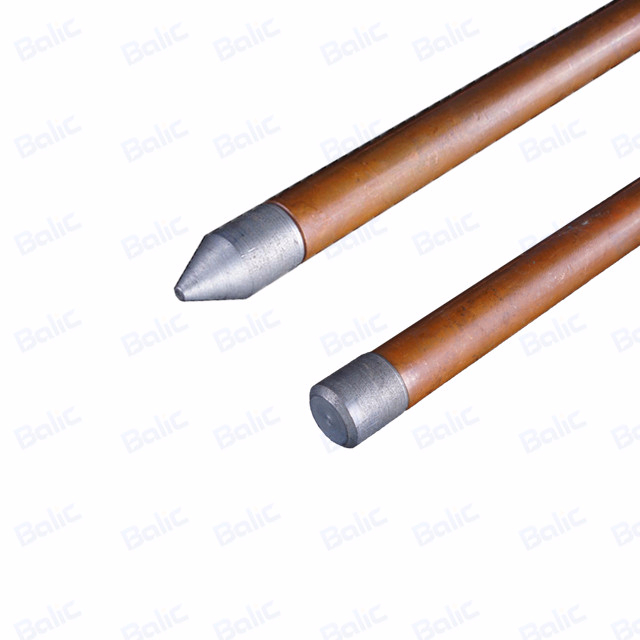

1. single grounding rods; a tip of a flat, laid directly.

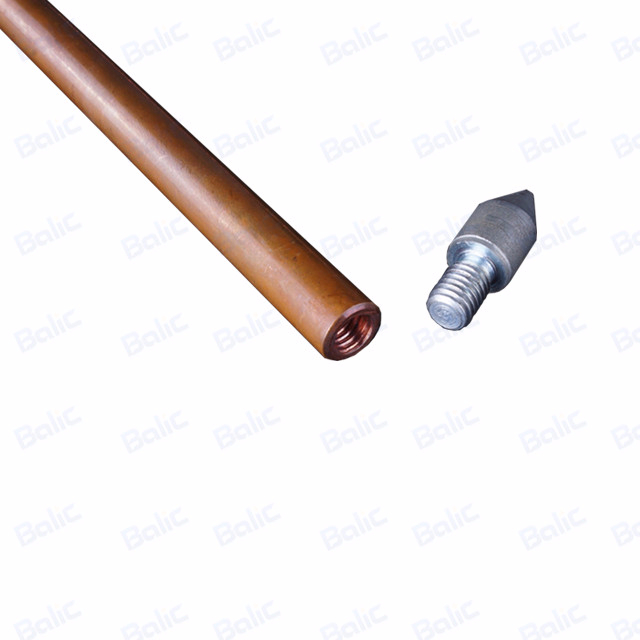

2. combined grounding rods; two with thread, by laying the ground rod connector body can determine the length of the ground according to soil conditions and ground resistance requirements of any.

Solid Copper And Stainless Steel Earth Rod (6)

Product Parameter
Material SS304
Tensile strength ≥520N/mm²
Straightness error ≤1mm/m
Service life ≥30years
Diameter according to customer's requirement
Function Used in grounding and lightning system
Available service mode OEM,ODM
Certificate ISO9001:2008,CE,SGS
Product Size
Product specifications Diameter (mm) Screw type (inch) Length (mm) Weight (kg)
CC1508 15 1/2” 1800 3.3
CC1536 15 1/2” 3600 6.4

Above is the common size, we also can do according to your requests. Please contact us to get to know more information about our products and service.

Product Advantages

1. good anti-corrosion: 304 stainless steel suitable for acid and alkali environment, with strong corrosion resistance under normal soil conditions, the service life of up to 30 years;

2. good mechanical properties: 304 stainless steel has excellent tensile properties;

3. adapt to the complex working environment: 304 stainless steel can work in high temperature cold regions, had little impact on the ground resistance change;

4. easy to install: suitable for mechanical and manual installation and the installation cost is low;

Product Installation

The installation of copper coated carbon electrode is very flexible ,both hammer and electric pick are ok .In the bad soil condition ,please drill and then install .

1.When installing the rod deeply with hammer , please fit the drilling head to protect copper layer and connect multi grounding rod with coupler ;

2.When installing the rod deeply in rock or other hard soil area with drilling tool ,please refer to below two choice:

1).Before installing rod ,please drill hole and then fill bentonite and water full to reduce electric resistance

2)Fill bentonite and water after installing the rods to reduce electric resistance

Product Packing

All of our products are with strong packing and free of charge, we also can provide packing according to customer’s requirement.
