We provide common sizes, we also can do according to your requests. Please contact us to get to know more information about our products and service.
As copper-bonded ground rods supplier, Bailijia offer the most economical & popular copper-bonded ground rods with low price .which is made with low carbon steel core bonded 99.9% pure electrolytic copper.
The copper-bonded ground rods have characters of anti-corrosion and ductility, which is superior than common copper clad steel rod and easy to install deeply.
Material | Copper Clad Steel |
Copper Thickness | ≥0.254mm |
Copper Purity | 99.9% |
Tensile strength | ≥580N/mm² |
Straightness error | ≤1mm/m |
Service life | ≥30years |
Diameter | according to customer's requirement |
Function | Used in grounding and lightning system |
Type | Threaded or flat or pointed |
Accessories | Coupling,Driving head ,Drill |
Available service mode | OEM,ODM |
Certificate | ISO9001:2008,CE,SGS |

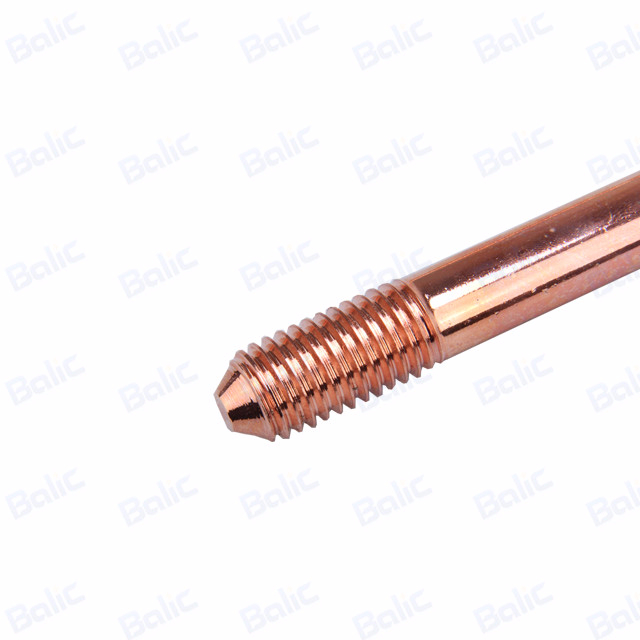

Copper-Bonded Ground Rod,Sectional:
Product specifications | Copper Thickness (mm) | Diameter (mm) | Screw type (inch) | Length (mm) | Weight (kg) |
CCSEP20-φ12.7x1200 | 0.254 | 12.7 | 9/16 | 1200 | 1.18 |
CCSEP20-φ12.7x1500 | 0.254 | 12.7 | 9/16 | 1500 | 1.55 |
CCSEP20-φ12.7x1800 | 0.254 | 12.7 | 9/16 | 1800 | 1.76 |
CCSEP20-φ14.2x1200 | 0.254 | 14.2 | 5/8 | 1200 | 1.52 |
CCSEP20-φ14.2x1500 | 0.254 | 14.2 | 5/8 | 1500 | 1.87 |
CCSEP20-φ14.2x1800 | 0.254 | 14.2 | 5/8 | 1800 | 2.29 |
CCSEP20-φ16x1200 | 0.254 | 16 | M18 | 1200 | 1.89 |
CCSEP20-φ16x1500 | 0.254 | 16 | M18 | 1500 | 2.37 |
CCSEP20-φ16x1800 | 0.254 | 16 | M18 | 1800 | 2.84 |
CCSEP20-φ17.2x1200 | 0.254 | 17.2 | 3/4 | 1200 | 2.2 |
CCSEP20-φ17.2x1500 | 0.254 | 17.2 | 3/4 | 1500 | 2.79 |
CCSEP20-φ17.2x1800 | 0.254 | 17.2 | 3/4 | 1800 | 3.28 |
CCSEP20-φ18x1200 | 0.254 | 18 | M20 | 1200 | 2.4 |
CCSEP20-φ18x1500 | 0.254 | 18 | M20 | 1500 | 3 |
CCSEP20-φ20x1200 | 0.254 | 20 | M22 | 1200 | 2.96 |
CCSEP20-φ20x1500 | 0.254 | 20 | M22 | 1500 | 3.7 |
Above is the common size, we also can do according to your requests. Please contact us to get to know more information about our products and service.
Coupling:
Product specifications | Rod Diameter (mm) | Screw type (inch) | Material | Weight (kg) |
8067101 | 12.7 | 9/16 | Brass |
|
8067103 | 14.2 | 5/8 | Brass | 0.1 |
8067105 | 16 | M18 | Brass | 0.111 |
8067107 | 17.2 | 3/4 | Brass | 0.145 |
8067109 | 18 | M20 | Brass | 0.147 |
8067111 | 20 | M22 | Brass | 0.15 |
Coupling used the high strength copper alloy, can protect the ground rod thread into the underground without damage and slow down the corrosion. Used for connecting rod and rod, rod and driving head, can according to need any increase the length of the rod. There are two kinds connection of threaded and unthreaded.
Product specifications | Rod Diameter (mm) | Screw type (inch) | Material | Weight (kg) |
8067201 | 12.7 | 9/16 | Steel | 0.071 |
8067203 | 14.2 | 5/8 | Steel | 0.08 |
8067205 | 16 | M18 | Steel | 0.13 |
8067207 | 17.2 | 3/4 | Steel | 0.121 |
8067209 | 18 | M20 | Steel | 0.127 |
8067211 | 20 | M22 | Steel | 0.219 |
Driving head used for ground rod play deep blow. Bailijia driving head used high strength alloy steel, a driving head can be recycled many times.
Product specifications | Rod Diameter (mm) | Screw type (inch) | Material | Weight (kg) |
8067301 | 12.7 | 9/16 | Steel | 0.05 |
8067303 | 14.2 | 5/8 | Steel | 0.059 |
8067305 | 16 | M18 | Steel | 0.065 |
8067307 | 17.2 | 3/4 | Steel | 0.068 |
8067309 | 18 | M20 | Steel | 0.075 |
8067311 | 20 | M22 | Steel | 0.099 |
Drill used for ground rod bottom drill deep. Bailijia drill used the high strength alloy, inside thread and thread of ground rod stick together, can effectively protect the rod in a deep hurt.
copper-bonded ground rods is used for earthing system of power plant, transformer station, tower, communication station, airport, railway, subway station , high building, computer room, petro plant, oil reservoir in the environmental of moist , saline and alkaline, acid and chemical corrosion medium environmental.
The installation of copper coated carbon electrode is very flexible, both hammer and electric pick are ok .In the bad soil condition ,please drill and then install .
1.When installing the rod deeply with hammer , please fit the drilling head to protect copper layer and connect multi grounding rod with coupler ;
2.When installing the rod deeply in rock or other hard soil area with drilling tool ,please refer to below two choice:
1).Before installing rod ,please drill hole and then fill bentonite and water full to reduce electric resistance
2)Fill bentonite and water after installing the rods to reduce electric resistance
All of our products are with strong packing and free of charge, we also can provide packing according to customer’s requirement.
