Insulated Copper Conductor

Insulated Copper Conductor

Insulated Copper Conductor

Insulated Copper Conductor

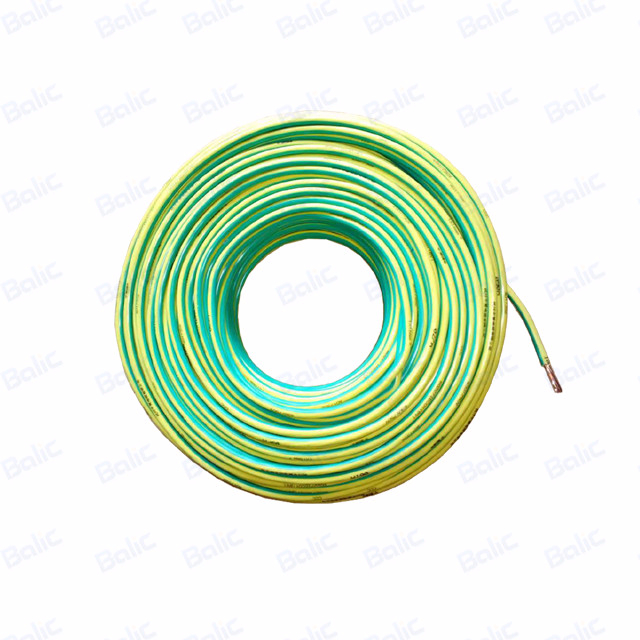

Insulated Copper Conductor/Yellow and Green PVC Copper Stranded Wire

We provide common sizes, we also can do according to your requests. Please contact us to get to know more information about our products and service.

inquiry
  • Detail
Product Description

The Insulated Copper Conductor is used as flexible connector in electric transmission and distribution appliance (such as volt transformer, electric stove),electronic equipment and thyristor. Green Yellow Grounding Wire also could be used for grounding wire in electric working. Also, it can be manufactured according to customer's drawings and demands.

Insulated Copper Conductor (9)

Product Parameter
Material 99.9%pure copper
Diameter  10-400mm²
Life ≥50 years

Voltage grade

450/750V
Characters Easy installation ,Good conductivity
Available service mode OEM,ODM
Certificate ISO9001:2008
Product Size

Product  specifications

 Nos/Dia(pcs/㎜)

Outer Dia(mm)

Weight(㎏/km)

BV 16

7/1.70

8.0

179

BV 25

7/2.14

10.0

281

BV 35

7/2.52

11.5

381

BV 50

19/1.78

13.0

521

BV 70

19/2.14

15.0

734

BV 95

19.2.52

17.5

962

BV 120

37/2.03

19.0

1180

BV 150

37/2.25

21.0

1470

BV 185

37/2.52

23.5

1810

Product Application

Insulated Copper Conductor is used for earthing system of power plant ,transformer station ,tower ,communication station ,airport, railway, subway station , high building ,computer room ,petro plant ,oil reservoir in the environmental of moist ,saline and alkaline ,acid and chemical corrosion medium environmental.

Product Packing

All of our products are with strong packing and free of charge, we also can provide packing according to customer’s requirement.

Insulated Copper Conductor (8)
